What project owners need to know.
A silicon ingot manufacturing project converts qualified polysilicon feedstock into controlled monocrystalline ingots using a crystal-growth system such as an MCG or CZ grower. A viable plant plan must align product specification, grower configuration, hot-zone design, utilities, consumables, quality control, post-growth handling, and the intended wafer route. JRST supports this chain through technical-commercial planning, equipment and material sourcing, installation coordination, commissioning support, and operational readiness.
What the manufacturing route includes
The route begins with the target application. Solar and semiconductor customers can require different purity, resistivity, dopant, oxygen, carbon, diameter, crystal-defect, and traceability controls. Those requirements determine the feedstock, furnace configuration, process recipe, metrology, and acceptance plan.

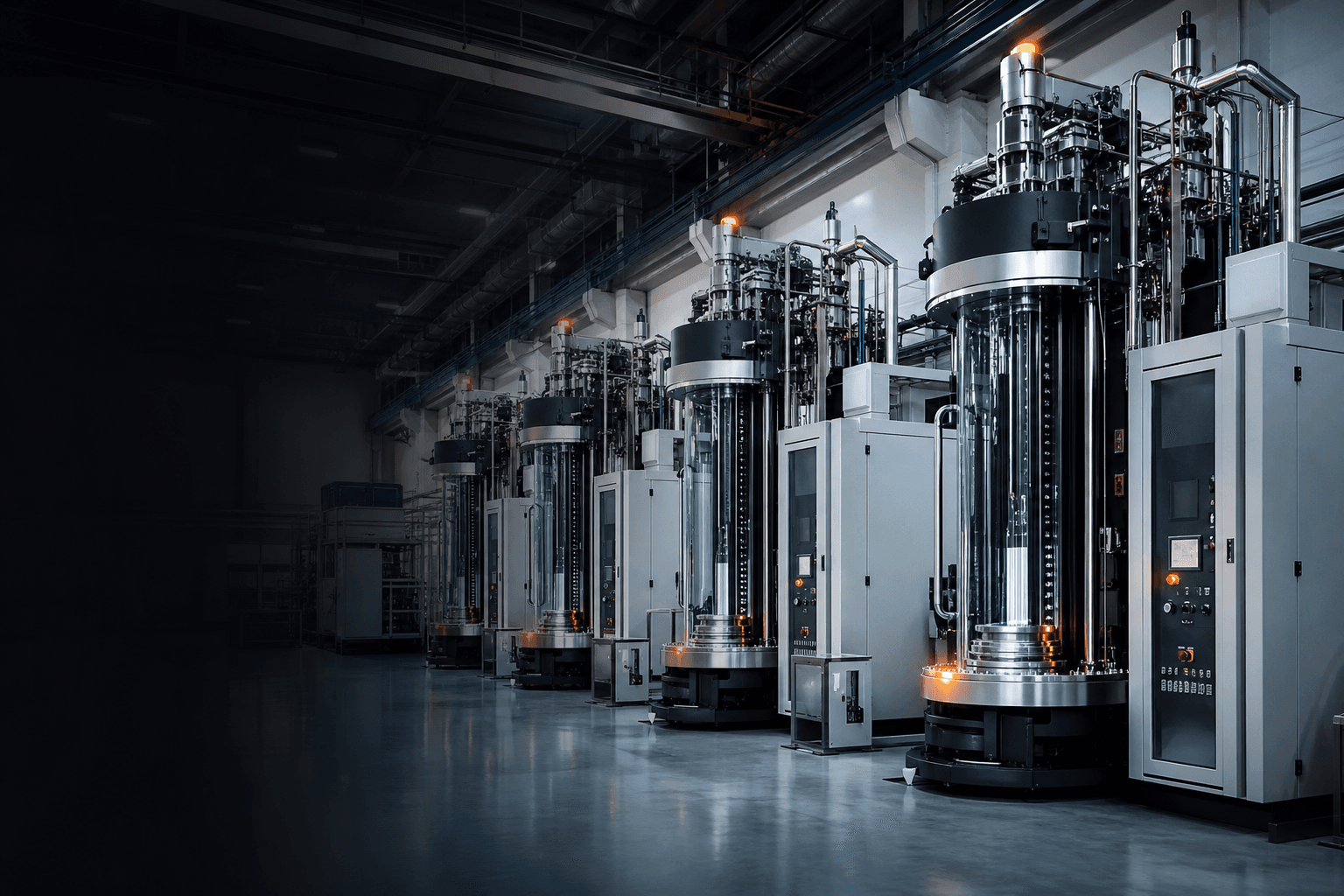

Inside the grower, polysilicon is melted in a quartz crucible and a seed crystal is used to draw a cylindrical monocrystalline ingot under tightly controlled thermal and rotational conditions. The ingot then moves through cooling, inspection, cropping, grinding or shaping, and, where included, wafer slicing and downstream cleaning.
Core plant systems
The crystal grower is only one part of the production system. Capacity and yield depend on the surrounding equipment, consumables, utilities, controls, maintenance strategy, and trained operating team.
- MCG/CZ crystal grower and compatible hot zone
- Quartz crucibles, graphite parts, heaters, insulation, and spares
- Power, cooling water, inert gas, vacuum, exhaust, and material handling
- Feedstock preparation, charging, post-growth inspection, and ingot finishing
- Process control, quality records, contamination control, and operator training
A practical project-development sequence
A credible project should move through gated decisions rather than beginning with machinery quotations. The product and customer requirement come first, followed by capacity and process modelling, site and utility validation, equipment configuration, commercial evaluation, facility engineering, procurement, installation, commissioning, qualification, and production ramp.
Each gate should have a documented output and approval criterion. This prevents a low headline machine price from driving a plant design that cannot meet the intended product, utility, yield, service, or qualification requirement.
- Define product, customer specification, diameter, grade, and annual output
- Model grower count, cycle assumptions, yield, consumables, utilities, and working capital
- Validate site, power quality, cooling, gases, vacuum, exhaust, material flow, and expansion space
- Issue a comparable technical RFQ and evaluate total installed cost
- Plan installation, acceptance testing, recipes, training, metrology, and qualification
- Ramp output through controlled engineering lots before commercial stabilization
How to evaluate equipment and suppliers
Equipment evaluation should connect the offered machine to the required crystal specification and the full path to accepted production. Buyers should verify the exact configuration, installed history, controls, software access, hot-zone compatibility, documentation, utilities, safety systems, service coverage, spares, refurbishment scope, and acceptance test.
New and refurbished routes can both be viable. The decision should compare total installed cost, lead time, technical risk, supportability, expected uptime, warranty, and the cost of reaching stable qualified output rather than acquisition price alone.
One CZ process, two markets: solar and semiconductor
Solar and semiconductor ingots are both grown by the Czochralski method: polysilicon is melted in a quartz crucible and a single crystal is pulled from a seed. The physics is shared; the specification is not. Semiconductor customers ask for tighter purity, tighter resistivity control along the crystal, lower and more uniform oxygen, and far stricter defect and contamination control, and they qualify suppliers over a longer cycle.
That shared base is why India's solar and semiconductor ambitions meet at the ingot. Crystal-growth know-how, crucible and hot-zone supply, and high-purity quartz feed both markets, even though a solar line cannot simply be relabelled as semiconductor capacity. The April 2026 pilot-batch announcement for the JRST-led Nagpur unit described both solar and semiconductor applications as targets; semiconductor-grade output would require its own qualification.
- Shared: CZ growth, quartz crucibles, hot zone, polysilicon feedstock
- Purity: solar-grade vs electronic-grade polysilicon and contamination control
- Resistivity: wider windows for solar; tight, customer-specified windows for chips
- Oxygen and defects: controlled for both, specified far more tightly for semiconductor wafers
- Qualification: cell-maker sampling for solar; long multi-stage qualification for semiconductor
Why the Indian opportunity is moving upstream
India's solar policy is increasingly focused on integrated domestic manufacturing. MNRE's PLI programme explicitly supports integrated high-efficiency solar PV manufacturing, while the announced ALMM List-III framework extends attention to ingots and wafers. This makes upstream planning, equipment access, quality systems, and bankable execution increasingly important.
A project owner should still validate scheme eligibility, effective dates, technical standards, and commercial assumptions with the relevant authority and professional advisers before committing capital.
Silicon ingot manufacturing in Maharashtra (Nagpur)
Nagpur has become one of the places where India's ingot ambitions are being tested on the ground. In April 2026, The Tribune carried a media release reporting that the JRST Technology-led Silicon Ingot Technology unit in Nagpur had completed its first pilot batch, described as a major step for Maharashtra's first silicon ingot manufacturing unit. A pilot batch validates commissioning, thermal behaviour and process readiness; it is not by itself proof of sustained commercial output.
Larger capacity is following. pv magazine reported on 16 March 2026 that Waaree Energies had begun construction of a 10 GW ingot and wafer plant at Butibori, Nagpur. For anyone planning crystal growth in the region, the practical questions are the same as anywhere in India: stable power, cooling water, argon and consumable logistics, and operators trained on the specific grower.
- Pilot batch completed at a JRST-led Nagpur ingot unit (reported April 2026)
- 10 GW ingot and wafer plant under construction at Butibori, Nagpur (reported March 2026)
- Plan power, cooling, argon and crucible supply before equipment arrives
- Treat pilot output as validation, not commercial capacity
Sourcing domestic silicon ingots ahead of ALMM List-III
ALMM List-III is scheduled to bring ingots and wafers under the Approved List of Models and Manufacturers from 1 June 2028, so cell and module makers are starting to qualify domestic ingot and wafer sources now. Our supplier checklist sets out the eight questions to ask any silicon ingot manufacturer in India before committing volume.
Planning for ALMM List-III? Talk to our team about domestic ingot-wafer supply through the contact page. Specifications are confirmed per order after technical validation.
How JRST supports this requirement
JRST can develop the project route, compare new and refurbished equipment, coordinate qualified suppliers, source line-specific materials and spares, and support plant setup through commissioning and stabilization. Scope and performance commitments are defined in a project-specific proposal.
Discuss your requirement
Mohammed Saif Zaveri connects JRST's industrial content to execution conversations.
As Co-Founder and designated partner of JRST Technology LLP, Mohammed Saif Zaveri works across industrial growth, strategic partnerships, client conversations, equipment strategy, and project pathways for silicon, solar, semiconductor, and advanced-manufacturing opportunities.
This knowledge page is part of JRST's public industrial knowledge base, designed to help buyers move from search terms and early research toward a structured technical-commercial discussion.
View Mohammed Saif Zaveri's profileConnect on LinkedInFrequently asked questions
Which silicon ingot plants are in Nagpur?
Nagpur, Maharashtra is emerging as an ingot-wafer location. JRST Technology's Silicon Ingot Technology unit completed its first pilot batch there in April 2026, described as Maharashtra's first silicon-ingot plant (The Tribune). Waaree Energies began construction of a planned 10 GW ingot and wafer facility at Butibori, Nagpur, in March 2026 (pv magazine).
What is the HS code for silicon ingots?
Under the Harmonized System, silicon containing at least 99.99% silicon by weight falls under subheading 2804.61, while chemical elements doped for use in electronics in the form of discs, wafers or similar forms fall under heading 3818. Which one applies to a given ingot or wafer depends on purity, doping and form, so the eight-digit Indian tariff line should be confirmed against the current CBIC customs tariff, and through an advance ruling where the classification is disputed.
Is there a silicon ingot plant in Maharashtra?
Yes. The JRST Technology-led Silicon Ingot Technology unit in Nagpur completed its first pilot batch in April 2026, reported as a step for Maharashtra's first silicon ingot manufacturing unit, and pv magazine reported that construction of a 10 GW ingot and wafer plant began at Butibori, Nagpur in March 2026.
What is a silicon ingot and how is it made?
A silicon ingot is a large cylinder of crystalline silicon. It is grown by melting high-purity polysilicon in a quartz crucible and slowly pulling a seed crystal out of the melt, which is known as the Czochralski (CZ) method. The finished ingot is cropped, squared and sliced into wafers used for solar cells and semiconductor devices.
What is required to establish a silicon ingot manufacturing plant in India?
The project requires a defined product specification, capacity model, MCG/CZ crystal growers, compatible hot zones and consumables, stable power and cooling, inert gas and vacuum systems, material handling, quality and metrology capability, trained operators, installation and commissioning, and a qualification plan tied to the intended customer.
Is an MCG machine different from a CZ crystal grower?
MCG, monocrystal grower, CZ grower, crystal puller, and ingot puller are overlapping commercial terms. The exact process capability, charge size, crystal diameter, controls, hot-zone configuration, utilities, and product specification matter more than the label.
How much does a silicon ingot plant cost in India?
There is no credible universal figure. Cost depends on the product grade, diameter, annual capacity, grower configuration, new or refurbished equipment, utilities, facility work, consumables, import and logistics, metrology, installation, commissioning, working capital, and production-ramp assumptions.
Can refurbished crystal growers be used for an Indian project?
Yes, when their technical fit, condition, refurbishment scope, controls, documentation, serviceability, utilities, warranty, spares, and acceptance testing are properly evaluated. The comparison should use total cost to qualified production.
Can JRST provide a turnkey silicon ingot plant?
JRST can support requirement definition, project planning, equipment and material sourcing, plant integration, installation and commissioning coordination, training, and production-readiness work. The exact responsibility, performance criteria, warranty, schedule, and commercial terms are defined in a project-specific agreement.
Where can I buy silicon ingots in India?
Domestic operating ingot capacity is still small, about 2 GW in September 2026 according to Mercom, so buyers usually qualify a supplier early with sample lots and test reports. JRST supplies silicon ingots from its Nagpur line; contact us with your diameter, type and resistivity requirement.
